DCS-CJL Series
DCS-CJL Series
DCS-CJL Series

DCS-CJL Series

10-50kg/bag

  • Tel:+86-335 8050535 8050799 8065663
  • Fax:+86-335 8051760
  • Email:puda0335@sohu.com

1. Product Description:

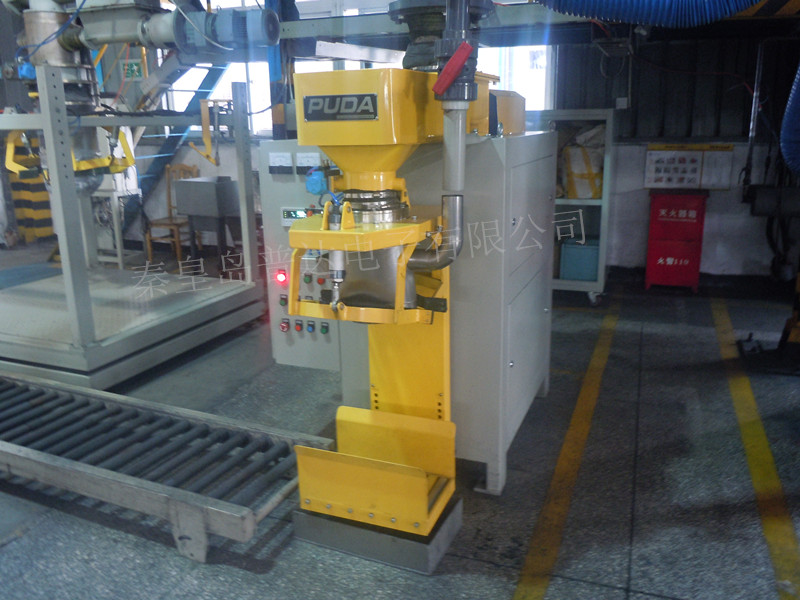

This series of machines are designed for packing non-free flowing powdery and flaked materials into open mouth bags. Representative Materials are Flour, Rare Earth, Bentonite, and Starch and etc.

2. Technical Parameters:

l  Weighing Range: 10-50kg

l  Packing Rate: 3-16bags/min (Packing speed depends on the material features and packing bags)

l  Weighing Accuracy: ±0.2

l  Applicable Voltage: AC220V-440V 50/60HZ Three-Phase Four-Wire (Client shall provide local voltage class and frequency)

l  Air Source Requirement: 0.4-0.8MPa Dry Compressed AirTotal Air Consumption: 0.3m3/min

l  Applicable Environment: Altitude2000meters, Humidity95% RH Non-congealable Dew, Operating Temperature:050, Storage Temperature : -2070

3. Working Principle:

Material is fed by horizontal screw feeder, and material will enter into weighing system uniformly from silo to feeding unit through screw. Machine starts and the screw feeder starts, then material will be filled into bag or weighing hopper. When weight value reaches the preset value, the screw feeder will stop running. Operator takes finished bag away or put it on belt conveyor of sewing machine. The single packing is finished.



4. Specification and Model:

Model

Weighing   Range

Filling

      Speed

Accuracy

Power

Reference   Weight

Referenced

Size (m)

DCS-CWJL

No Weighing   Hopper

10-50kg

3-5 bags/min

±0.2%

3kw

650kg

Recommend Mounting   Height2.2

DCS-CDJL

Single   Weighing Hopper

10-50kg

4-6 bags/min

±0.2%

4kw

950kg

Recommend Mounting   Height3.3

DCS-CSJL

Double   Weighing Hoppers

10-50kg

10-16 bags/min

±0.2%

7kw

1200kg

Recommend Mounting   Height3.7
